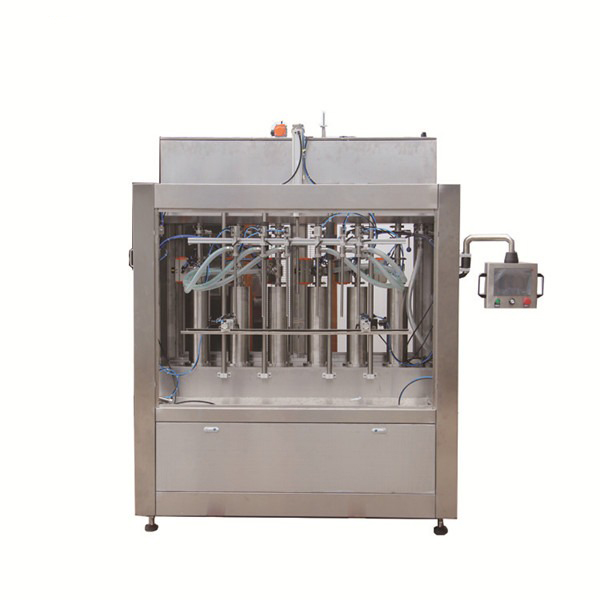

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.
masina de umplere a lichidului de spalat vase
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
CE al UE
Respectați cerințele GMP
longlife of service, low mainteinance rate
Mașina este o mașină avansată de umplere de înaltă precizie, care poate completa procesul de numărare, umplere și capsulare a sticlelor automat.
1. Compact structurat, cu aspect bun, ușor de utilizat și puternic automatizat.
2. Componentele de contact cu materialul sunt realizate din oțel inoxidabil, ușor de curățat.
3. Volumul de umplere este controlat cu supape de film pentru a asigura precizia.
4. Robinetele de umplere de mare viteză și de înaltă precizie nu asigură scurgeri.
5. Este echipat cu un sistem de alimentare eficientă a capacelor.
Opțiune de limbă
Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.
1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.
2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.
3. Poate memora mulți parametri, utile pentru diferite specificații schimbate, toate dozajul de umplere poate fi ajustat prin ecran tactil.
4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.
5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.
6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.
Parametrul tehnic principal
|01||Dimensiunea mașinii (L * W * H)||2200mm * 1400mm * 2800mm|
|02||Greutatea mașinii||Aproximativ 1400 kg|
|03||Diametrul interior al deschiderii containerului||≥φ35mm|
|AC 380V; 50 HZ|
|08||Precizia de umplere||≤ ± 1%|
|09||Sursa de aer||0,6Mpa aer comprimat stabil și curat|
|11||Numărul de duze de umplere||13|
|12||Înălțimea transportorului||900mm ± 50mm|
|13||capacitate||≤3200bottles / hour (luați apa ca test)|
|14||Sticla în direcția de alimentare||De la stanga la dreapta|
Tip: Mașină de umplere
Tip ambalaj: Sticle
Material de ambalare: lemn
Grad automat: automat
Tip condus: Pneumatic
Locul de origine: Shanghai. China (Continentală)
Nume de marcă: NPACK
Dimensiune (L * W * H): 2200mm * 1400mm * 2800mm
Servicii post-vânzare furnizate: Ingineri disponibili pentru mașini de service peste mări
Ecran tactil: Panasonic
Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.
One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.
Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.
The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.
When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.
In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
